CRT LifeScan measurement hardware

Every CRT LifeScan Care system includes a handheld Bluetooth infrared contact probe that sends each reading straight to your laptop or desktop workstation — and on to the cloud for analysis.

Hardware

The measurement probe

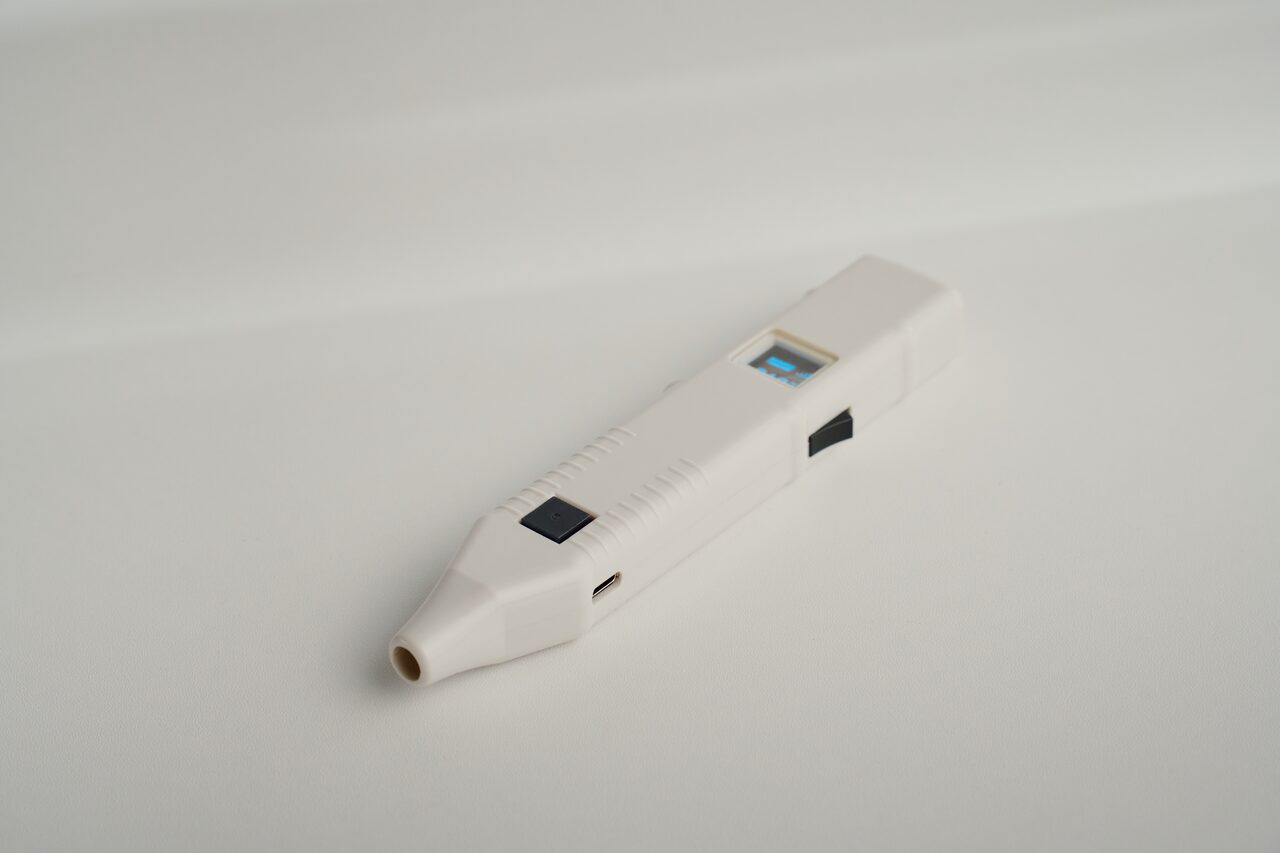

The CRT LifeScan handheld Bluetooth infrared probe
Handheld probe
MLX90614 IR thermometerBluetooth LE radioLaptop / desktop
Inside: infrared sensor + Bluetooth radio
One device

CRT LifeScan Bluetooth Infrared Probe

A custom-manufactured handheld contact probe. The Infrared Probe and the Bluetooth Infrared Sensor are a single device: the probe tip is placed on the skin at each of the 119 standardized measurement points — before and after the cold challenge — while the Melexis MLX90614 non-contact infrared sensor inside reads the skin-surface temperature. The built-in Bluetooth radio sends every reading straight to your laptop or desktop workstation. No cables between probe and computer.

Handheld Contact probe · IR sensor Bluetooth wireless Melexis MLX90614 119 points Laptop or desktop

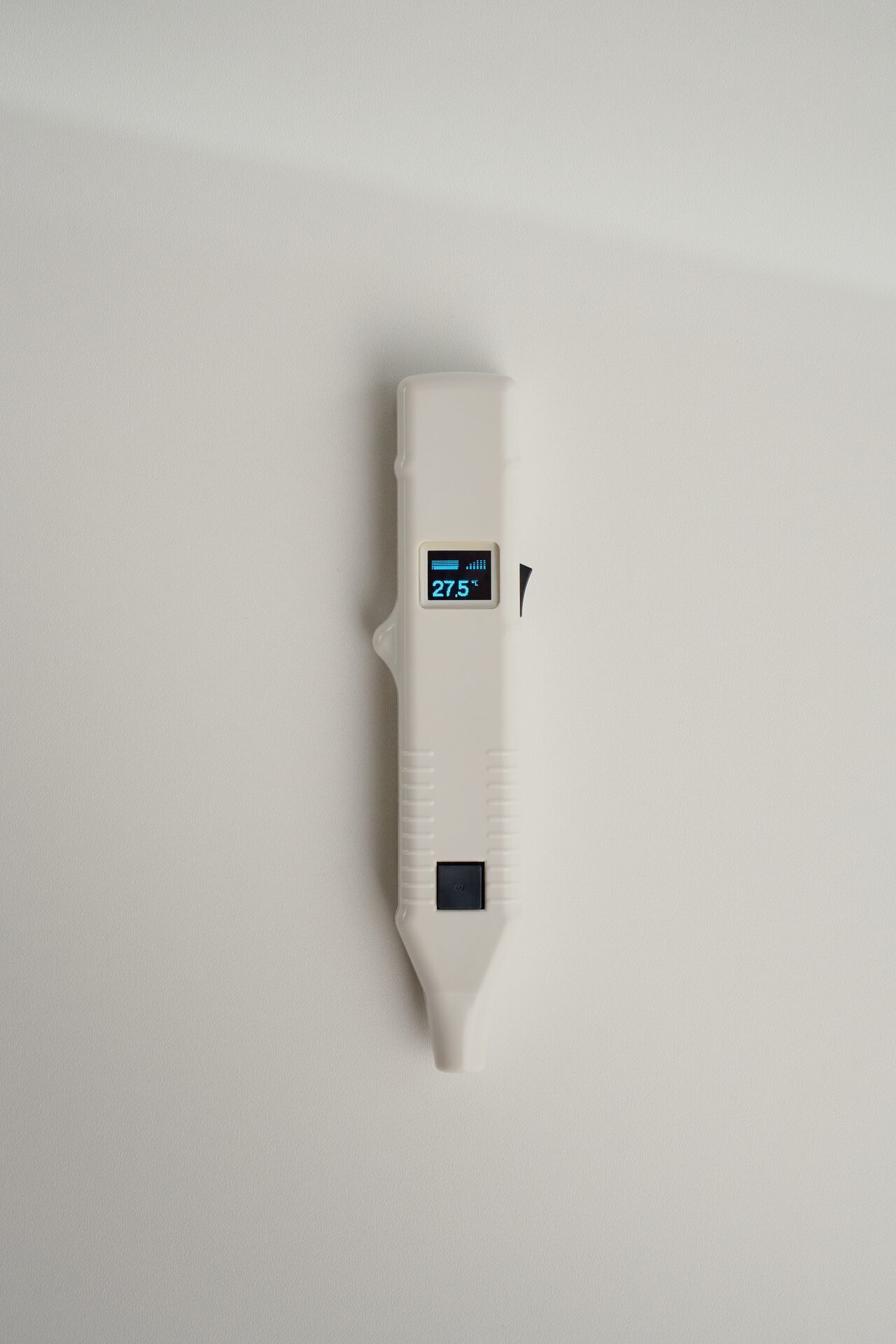

The CRT LifeScan probe seen from above, showing its display and reading button
Display and reading button

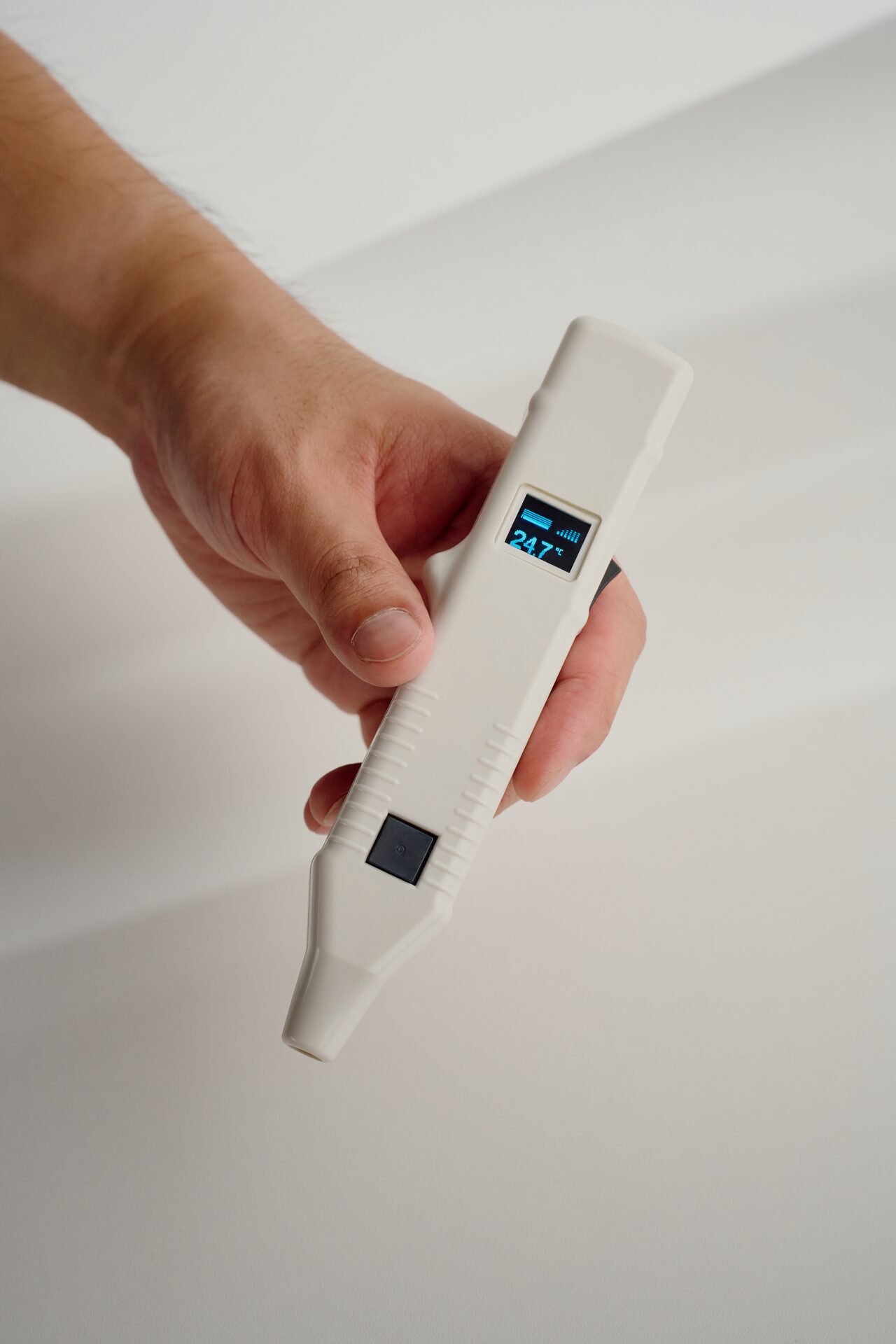

The CRT LifeScan probe held in the hand
Sized for one hand

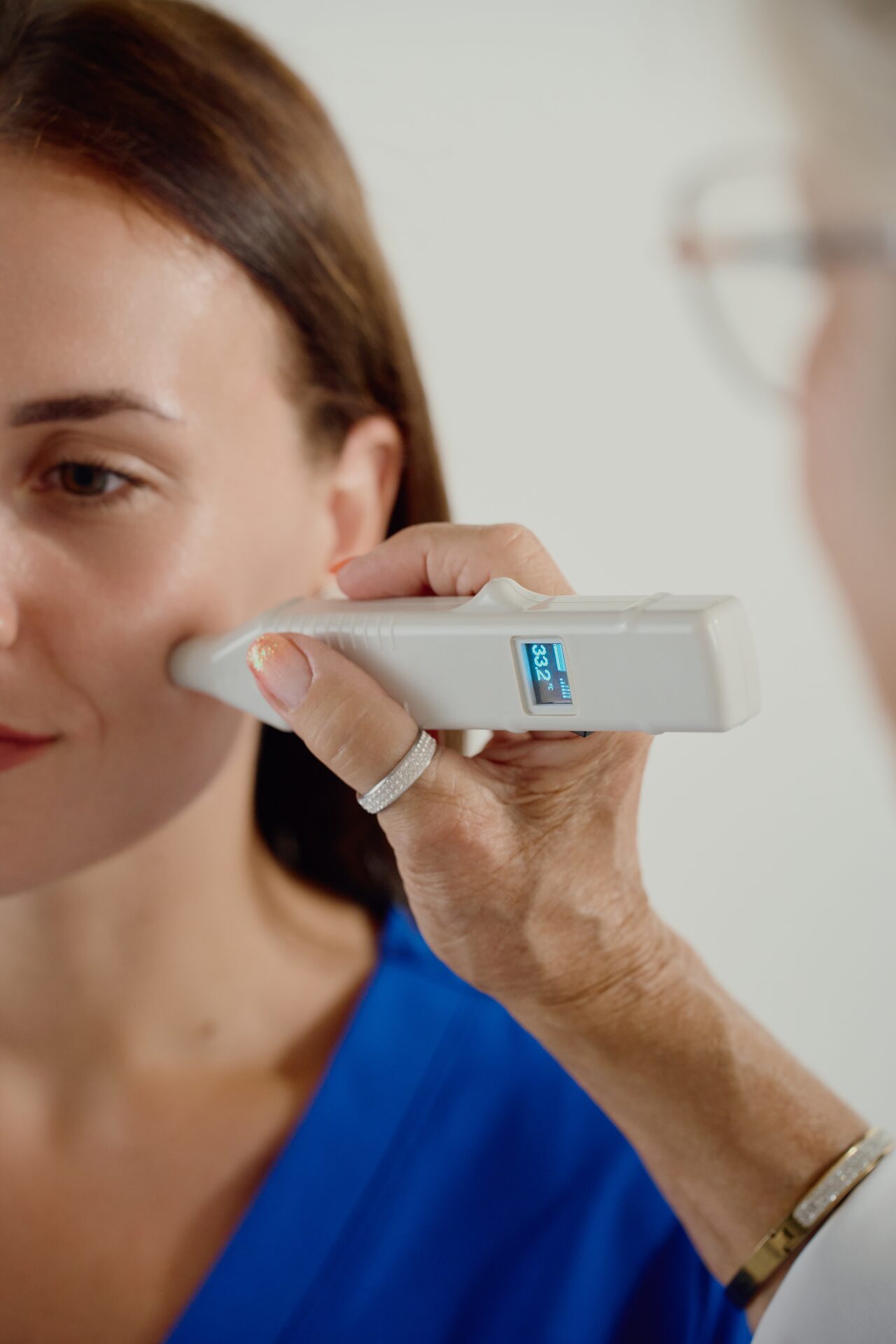

A practitioner measuring a point on the patient's cheek with the CRT LifeScan probe
Placed at each measurement point
Workstation

Desktop or laptop

The same probe pairs with an all-in-one desktop in the clinic or a laptop for home visits.

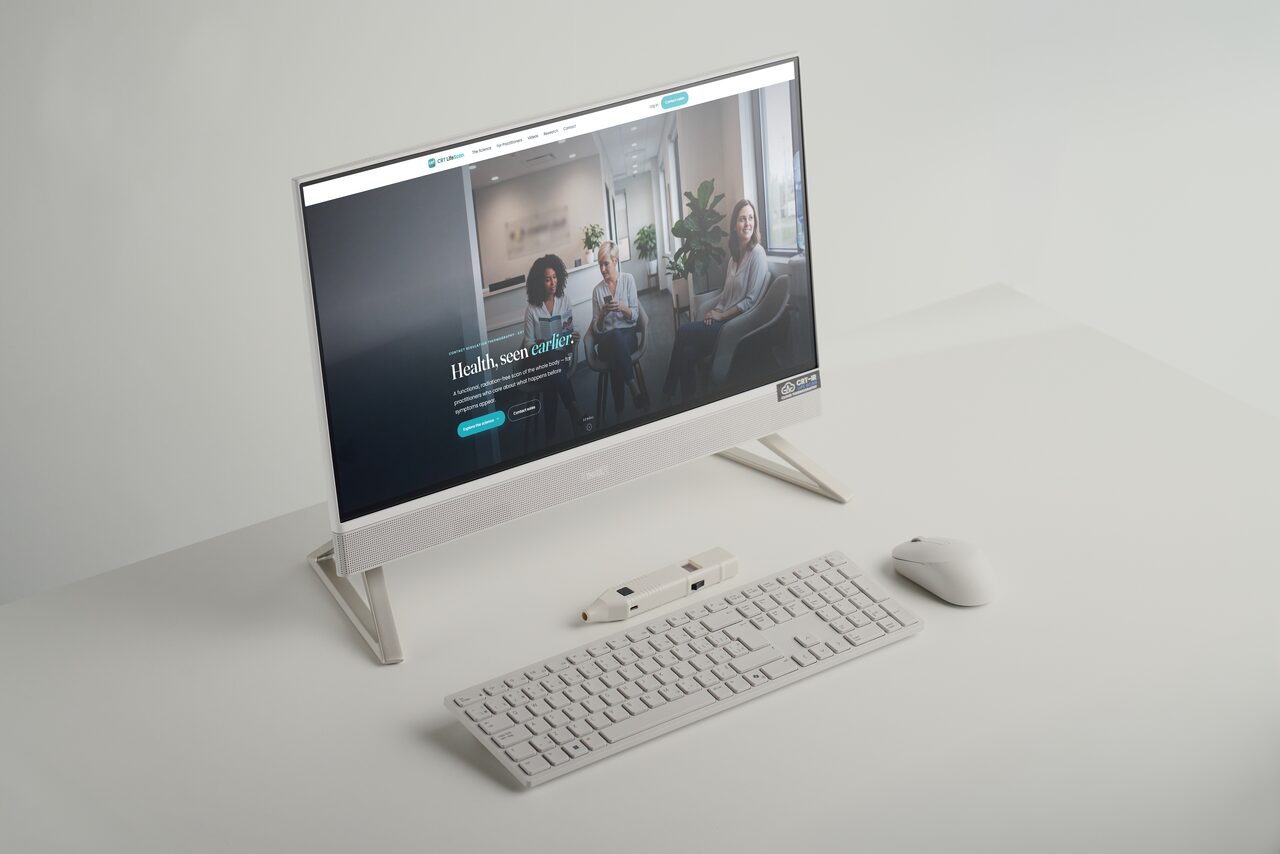

The CRT LifeScan probe beside an all-in-one desktop workstation, keyboard and mouse
Desktop workstation

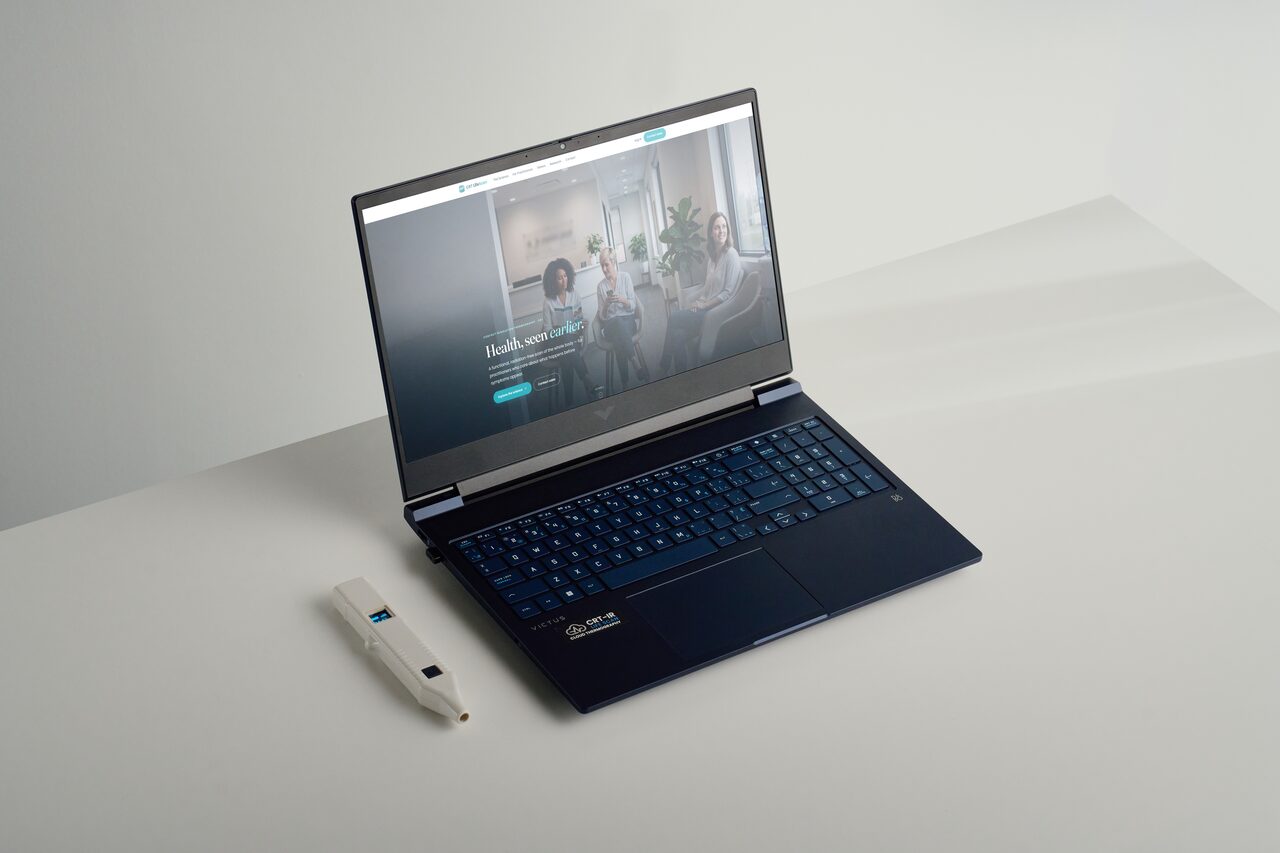

The CRT LifeScan probe next to an open laptop running CRT LifeScan
Laptop workstation
At a glance

Sensor & system specifications

The sensing element is a Melexis MLX90614 infrared thermometer, in versions that comply with the ASTM specification for infrared thermometers used to determine patient temperature.

MeasurementHandheld contact probe; skin-surface temperature read by a built-in non-contact infrared sensor, sent over Bluetooth
Infrared sensorMelexis MLX90614 infrared thermometer
Sensor versionsMLX90614ESF-DCC MLX90614ESF-DCH MLX90614ESF-DCI
StandardsVersions MLX90614ESF-DCC, -DCH and -DCI comply with ASTM standard section 5.4 (Designation: E1965 – 98 (Re-approved 2009) — Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature).
Quality systemSensor manufacturer holds ISO 13485 certification (medical devices — quality management systems)
ConnectivityBuilt-in Bluetooth wireless link to the CRT LifeScan workstation
WorkstationLaptop or desktop, with cloud analysis & reporting
Measurement protocol119 standardized points, read before and after a ~10-minute cold challenge
Standards & quality

Compliance

ASTME1965SECTION 5.4

ASTM E1965-98 compliant sensor

Melexis MLX90614 versions ESF-DCC, ESF-DCH and ESF-DCI comply with ASTM standard section 5.4 (Designation: E1965 – 98, Re-approved 2009) — the Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature.

ISO13485CERTIFIED QMS

ISO 13485 certified sensor manufacturer

The probe's infrared sensor is produced by a manufacturer certified to ISO 13485 — the international quality-management-system standard for the design and manufacture of medical devices.

Certificate details are available on request from our sales team.

Responsible use: Contact regulation thermography is an adjunctive diagnostic method — not a sole screening procedure, not a replacement for mammography, and not a replacement for definitive diagnosis.
